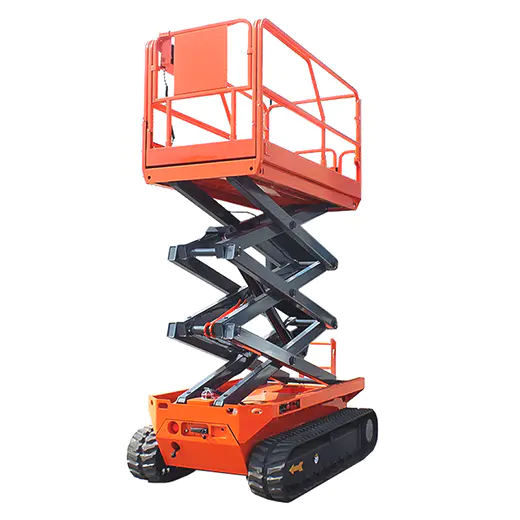

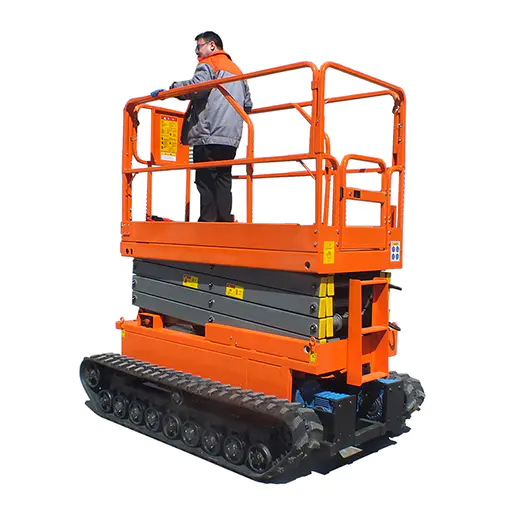

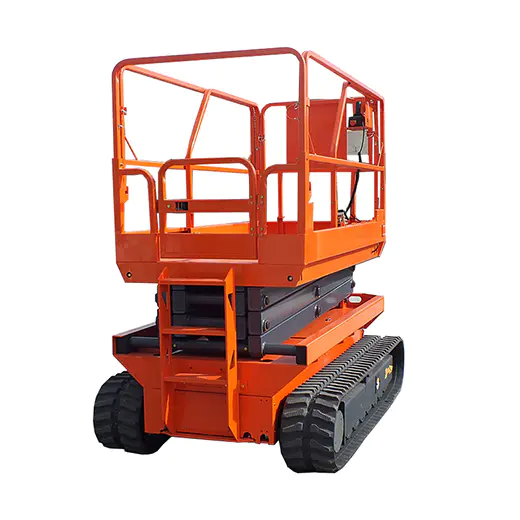

12M Crawler Type Scissor Lift (SP-TC12)

SAGA FIRST Self-propelled Track Crawler Scissor Lifts are electric drive. Our tracked scissor lifts can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.

Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 14m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field...

Contact Us

Technical Parameters :


Model TypeSP-TC12
Crawler Type 8m
Load Capacity320Kg
Load Capacity of Extendable Platform113Kg
Workers on Platform2
Max Lifting Height14m
Max Working Height11.75m
Overall Length(with ladder)2470mm
Overall Length(without ladder)2280mm
Overall Width1390mm
Overall Height(Guardrails unfolded)2670mm
Overall Height(Guardrails folded)2130mm
Platform Size2270X1120mm X700mm
Extendable Platform Length900mm
Min Turning Radius0m
Min Ground Clearance150
Lifting Motor48V/4Kw
Driving Motor2X48v/4Kw
Driving Speed2.4Km/h
Lifting UP/DOWN Speed85/75sec
Charger48V/25A
Machine Weight3000Kg
