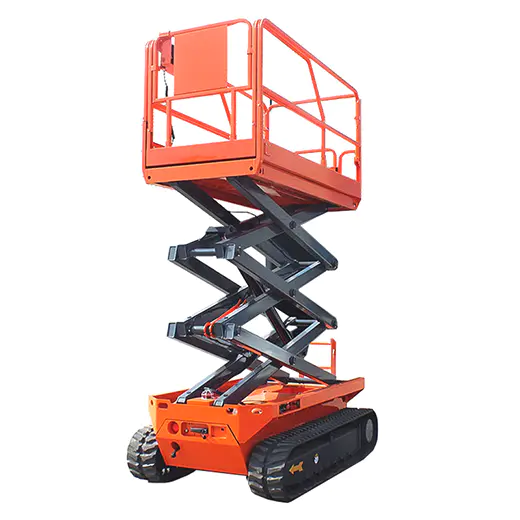

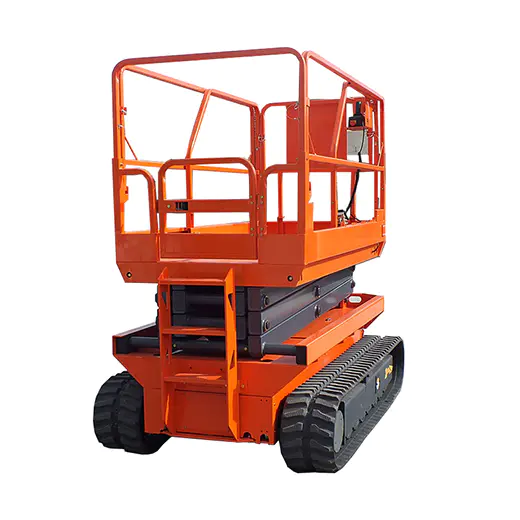

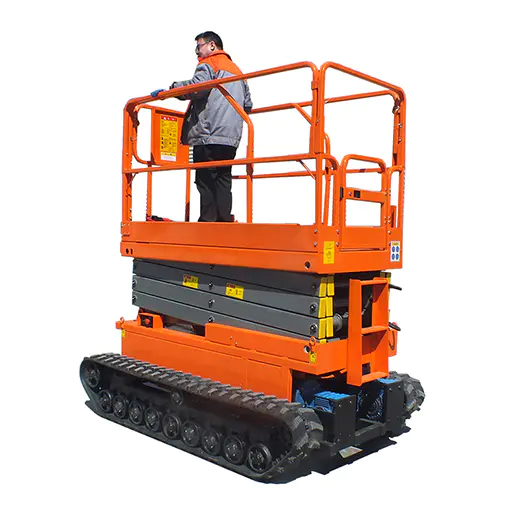

4.6M Crawler Type Scissor Lift (SP-TC05)

SAGA FIRST Self-propelled Track Crawler Scissor Lifts are electric drive. Our tracked scissor lifts can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.

Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 14m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field...


Contact Us

Technical Parameters :





Model TypeSP-TC05
Crawler Type 4.6m
Load Capacity200Kg
Load Capacity of Extendable Platform100Kg
Workers on Platform1
Max Lifting Height6.5m
Max Working Height4.5m
Overall Length(with ladder)1270mm
Overall Length(without ladder)1270mm
Overall Width790mm
Overall Height(Guardrails unfolded)1820mm
Overall Height(Guardrails folded)
Platform Size1230X655mm
Extendable Platform Length550mm
Min Turning Radius0m
Min Ground Clearance50
Lifting Motor24v/0.1.2Kw
Driving Motor2X24v/1.5Kw
Driving Speed1.7Km/h
Lifting UP/DOWN Speed24/20sec
Charger25%
Machine Weight790Kg
