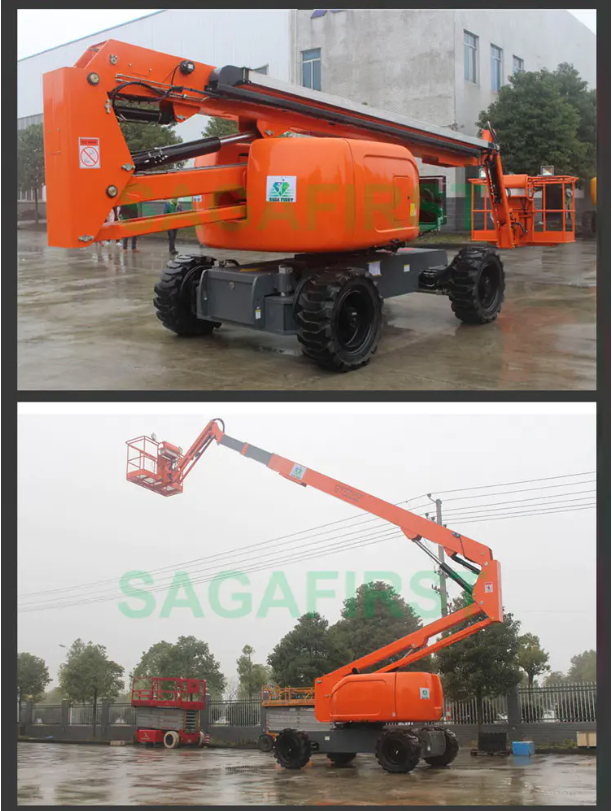

24 Articulated boom lift(SPABL-24JIB)

SAGA FIRST Articulating Boom Lifts are of two power motors:battery and diesel,with maximum working height from 12m to 47m. Our main components are all imported from USA and Europe. The electric powered boom lifts using DC battery power can be worked quietly suitable for indoor use. The emergency descending system which can let the machine work normally when the power is cut off. The diesel powered boom lifts have the weighting device with patented technology which can accomplish the exact weighing for the platform load, safety and reliability, anti mal-operation function to avoid the engine restart in starting status and suitable for outdoor use.

Contact Us

Technical Parameters :

Model Type No.SPABL-24JIB
Working Height Maximum26.2 m
Platform Height Maximum24.2 m
Horizontal Outreach Maximum15.8 m
 Lifting capacity230 kg
Up & Over Height maximum9.8 m
Length( stowed)  Ⓓ9.92 m
Width (stowed)  Ⓔ2.48 m
Height(stowed) Ⓒ2.82 m
Wheel base Ⓕ3 m
Ground clearance  Ⓖ0.43 m
Platform measurement  Ⓑ*Ⓐ1.83*0.76 m
Tuning radius (inside)2.6 m
Tuning radius (outside)5.85m
 Speed(stowed)4.2 km/h
Travel speed(raised or extended)1.1km/h
Turn table swing360° Continuous
Platform LevelingAutomatic leveling
Swing Speed0~0.8rpm
Grade ability45%
Solid tire36×14-20
Motor PumpCummins

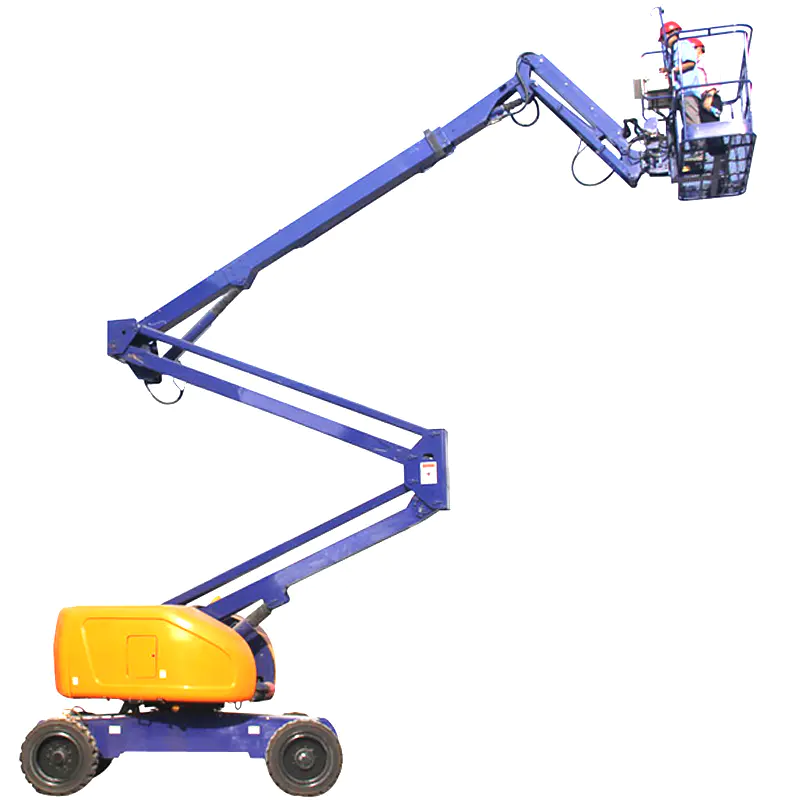

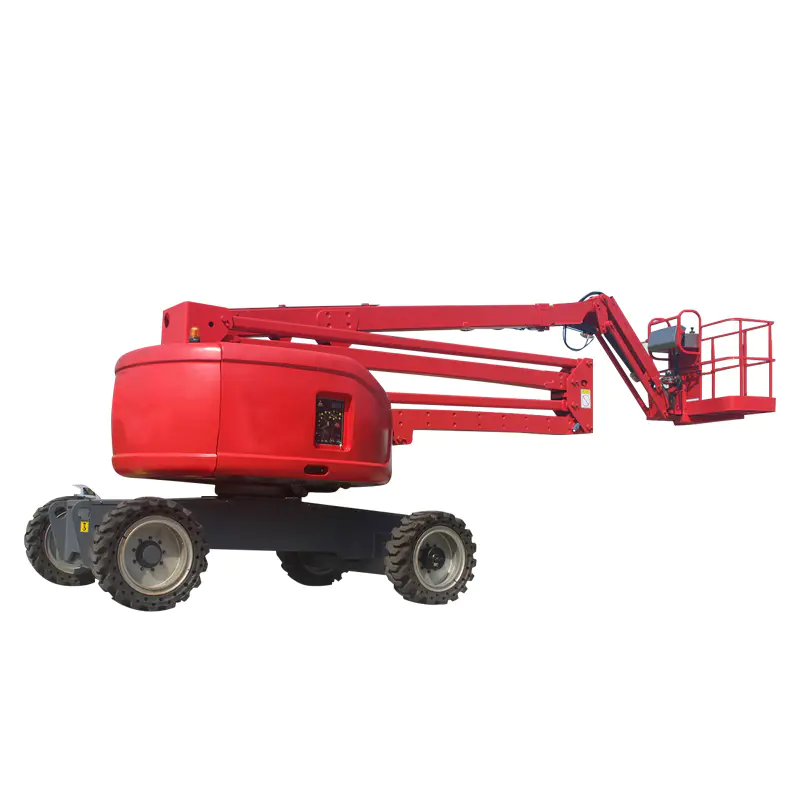

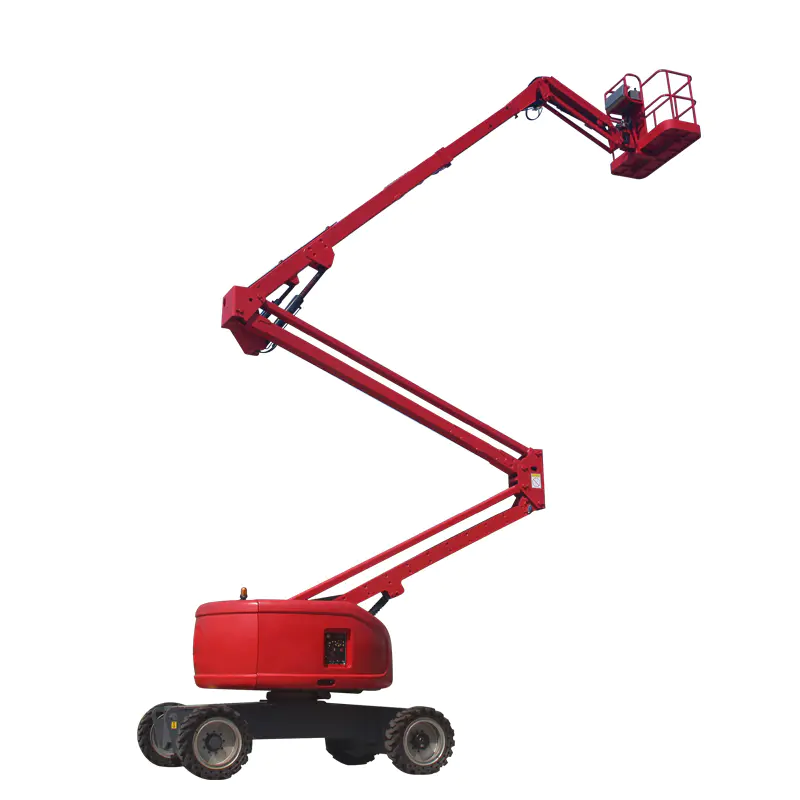

Related Products
