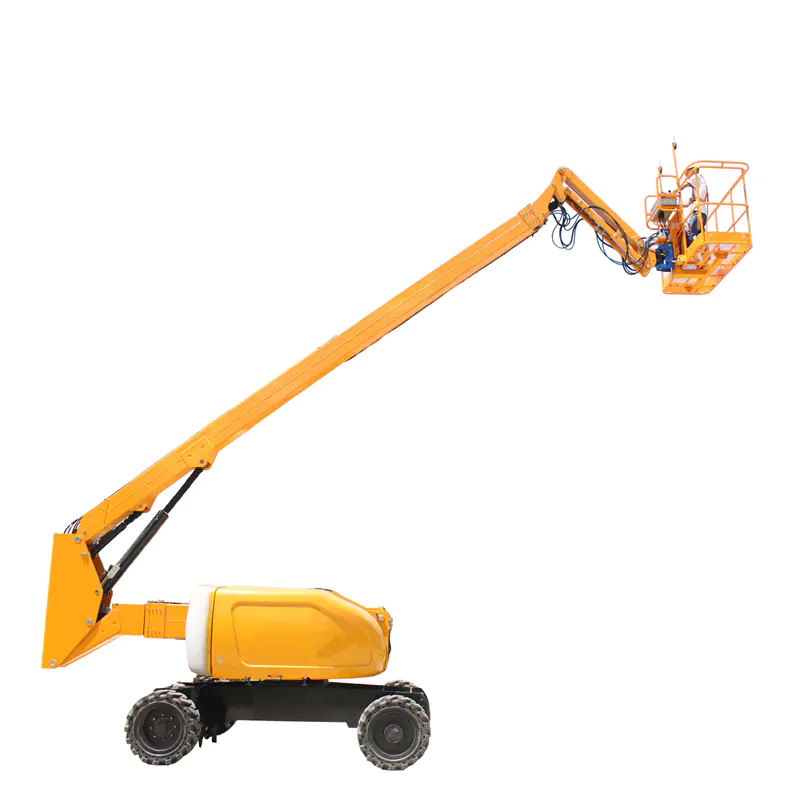

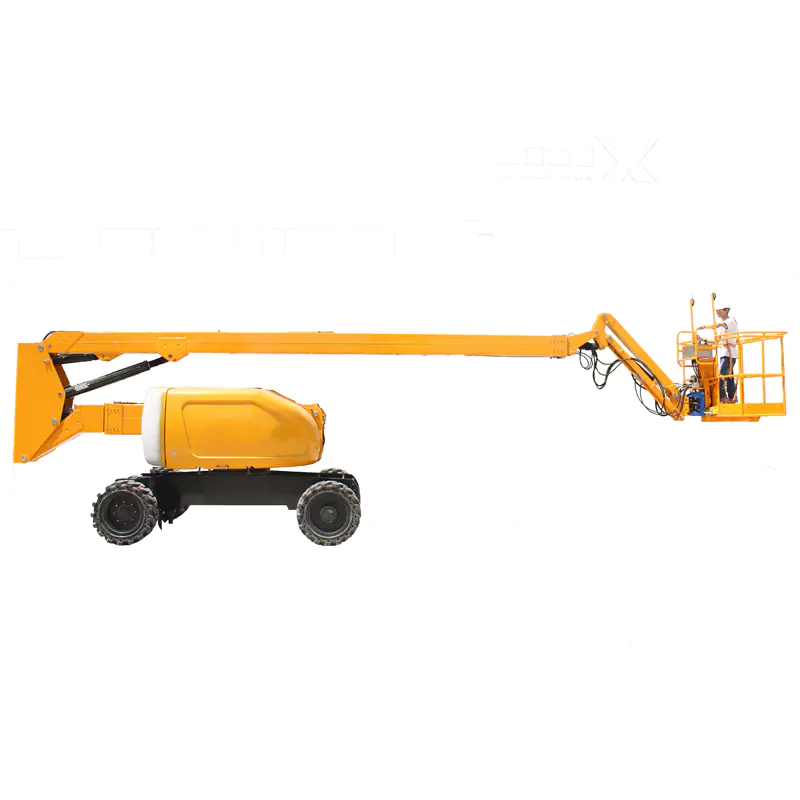

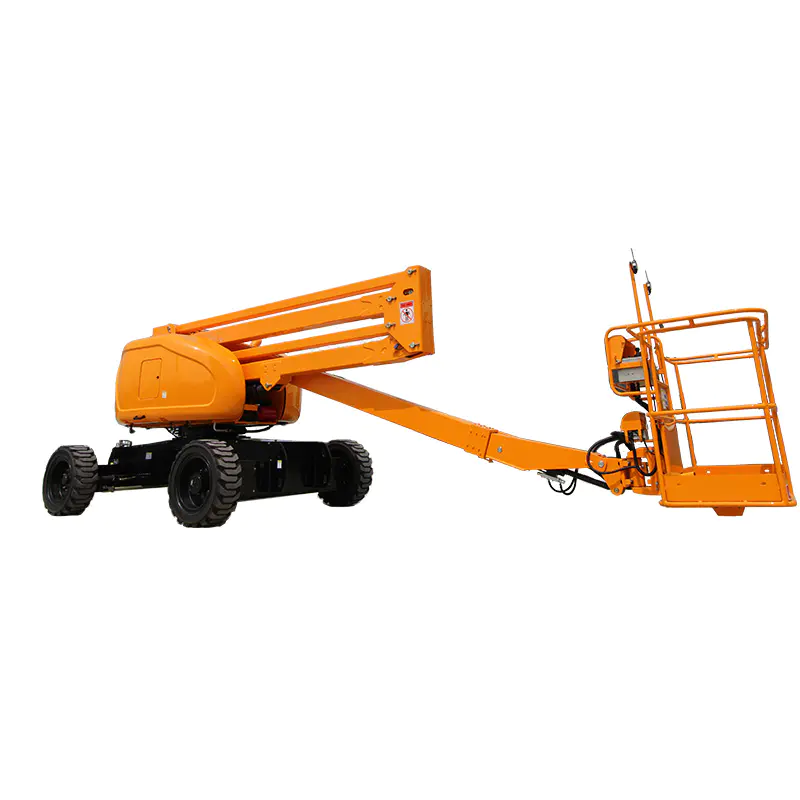

16m Articulated boom( SPABL-16JIB)

SAGA FIRST Articulating Boom Lifts are of two power motors:battery and diesel,with maximum working height from 12m to 47m. Our main components are all imported from USA and Europe. The electric powered boom lifts using DC battery power can be worked quietly suitable for indoor use. The emergency descending system which can let the machine work normally when the power is cut off. The diesel powered boom lifts have the weighting device with patented technology which can accomplish the exact weighing for the platform load, safety and reliability, anti mal-operation function to avoid the engine restart in starting status and suitable for outdoor use.



Contact Us

Technical Parameters :

Model Type No.SPABL-16JIB
Working Height Maximum18 m
Platform Height Maximum16 m
Horizontal Outreach Maximum9.8 m
 Lifting capacity230 kg
Up & Over Height maximum7.75 m
Length( stowed)  Ⓓ7.7 m
Width (stowed)  Ⓔ2.28 m
Height(stowed) Ⓒ2.38 m
Wheel base Ⓕ2.45m
Ground clearance  Ⓖ0.43 m
Platform measurement  Ⓑ*Ⓐ1.83*0.76 m
Tuning radius (inside)2.61 m
Tuning radius (outside)5.61 m
 Speed(stowed)4.2km/h
Travel speed(raised or extended)1.1km/h
Turn table swing360° Continuous
Platform LevelingAutomatic leveling
Swing Speed0~0.8rpm
Grade ability45%
Solid tire33×12-20
Motor PumpCummins
