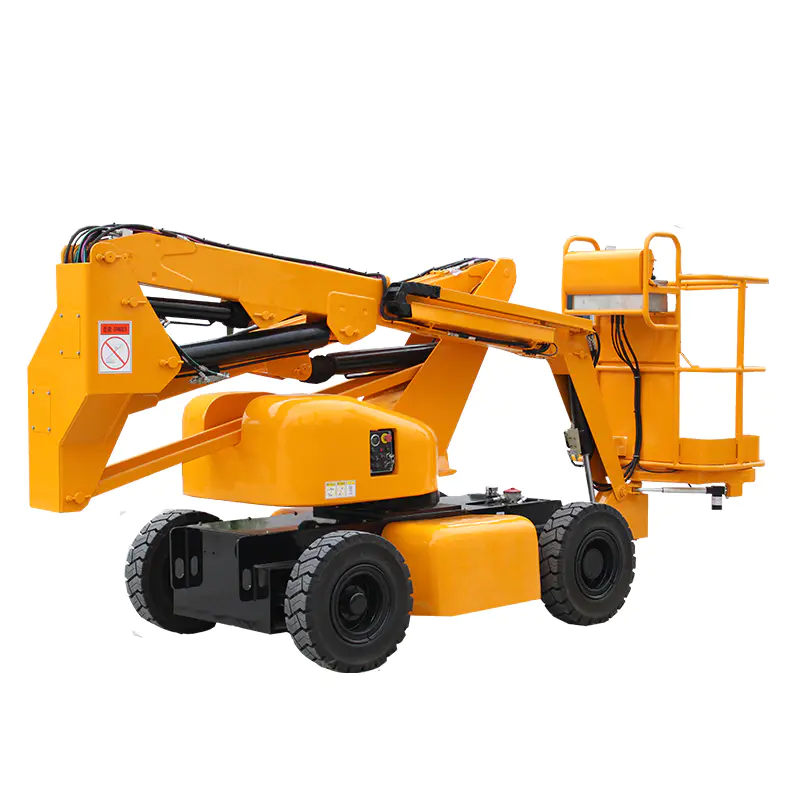

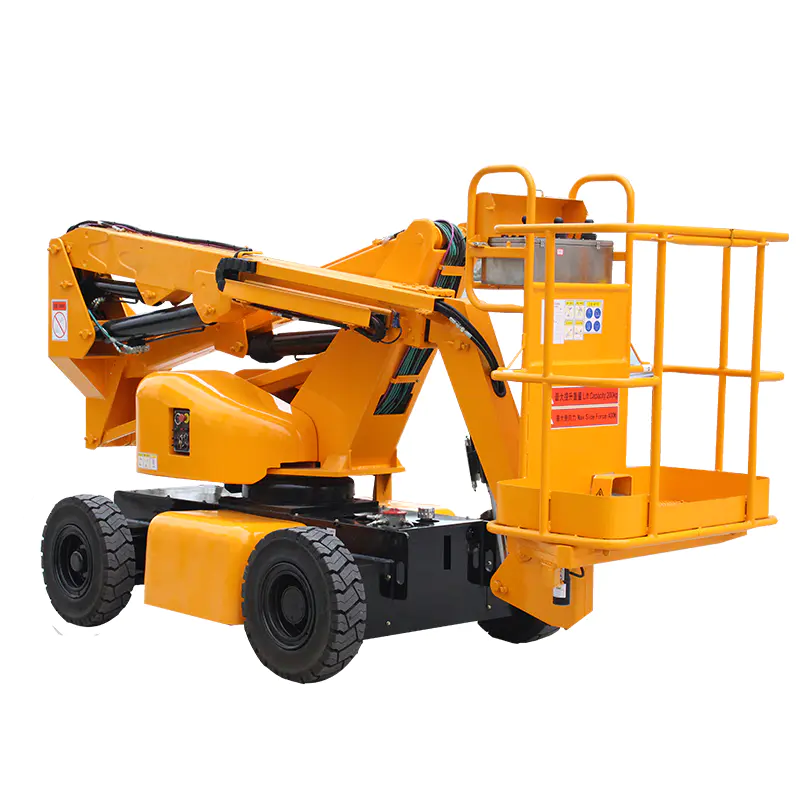

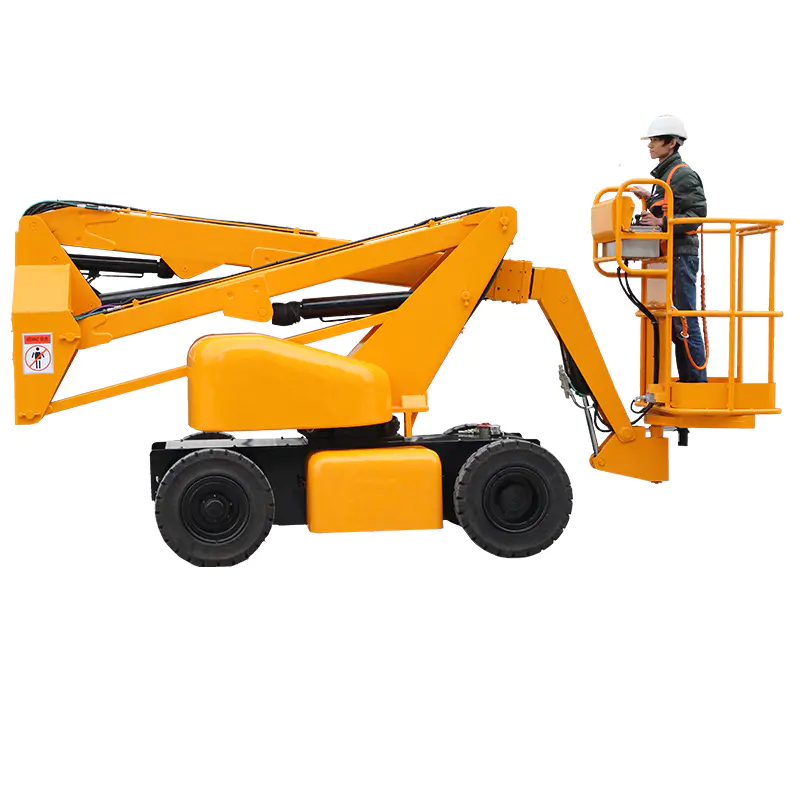

10m Articulated Boom Lift (SPABL-10B)

SAGA FIRST Articulating Boom Lifts are of two power motors:battery and diesel,with maximum working height from 12m to 47m. Our main components are all imported from USA and Europe. The electric powered boom lifts using DC battery power can be worked quietly suitable for indoor use. The emergency descending system which can let the machine work normally when the power is cut off. The diesel powered boom lifts have the weighting device with patented technology which can accomplish the exact weighing for the platform load, safety and reliability, anti mal-operation function to avoid the engine restart in starting status and suitable for outdoor use.

Contact Us

Technical Parameters :

Model Type No.SPABL-10B
Working Height Maximum12 m
Platform Height Maximum10 m
working radius maximum5.8 m
Lift capacity200kg
Crossing height4.78 m
Length( stowed)  Ⓓ4.35m
Width (stowed)  Ⓔ1.5m
Height(stowed) Ⓒ1.99 m
Wheel base Ⓕ1.65 m
Ground clearance  Ⓖ0.15 m
Platform measurement  Ⓑ*Ⓐ1.1*0.65 m
Tail swing0.25 m
Grade ability25%
Travel speed(stowed)3 km/h
Travel speed(raised )0.8 km/h
Solid tire Φ590*190
Vertical jib rotation 140°
Turntable swing ±80 °
Platform rotation355°
Platform LevelingAutomatic leveling
Total weight4800 kg
Control voltage24v DC
Driving electric motor6.5 kw*2
Pump electric motor7.5kw
