Weight（kg）

Gross Weight

4495KG

Overall Size(mm)

5995*1960*2980MM

Curb Weight

4295KG

Axial Distance(mm)

2800mm

Motor

Model

CY4SK251

Emission Standard

Diesel III

Power/Displacement(KW/ml)

115/3856/156

Chassis Factory

Dongfeng Motor Co.,Ltd

Capacity

Max Driving Speed(km/h)

99

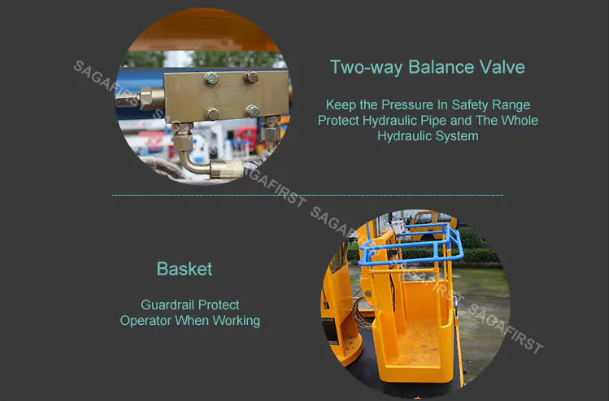

Basket/Hook

1pc Basket

1080*620*1150mm

Driving Cab Passengers(man)

3

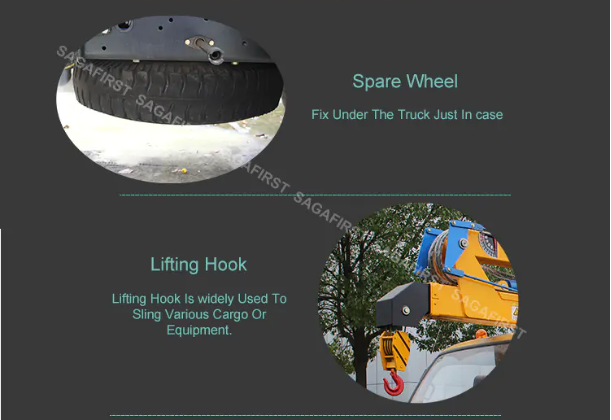

1pc Hook

1.2m

No.of Axles

2

Hydraulic System

Cylinder

10no.

Axles Load(Kg)

3000/4490

Oil Capacity

65L

Number of Tyre

6

Driving angle(°)

Approach angle

20

Tyre Spec.

7.50R16

Departure angle

14

Function

Max Work Height

14m

Easy to operate

With ignition

Rated Load of Basket

200kg

Swing angle

Two-way 360° continuous rotation

Rotating Speed

1~2r/min

Hook Lifting Weight

1000kg

Max Lifting Height of boom

6.4m

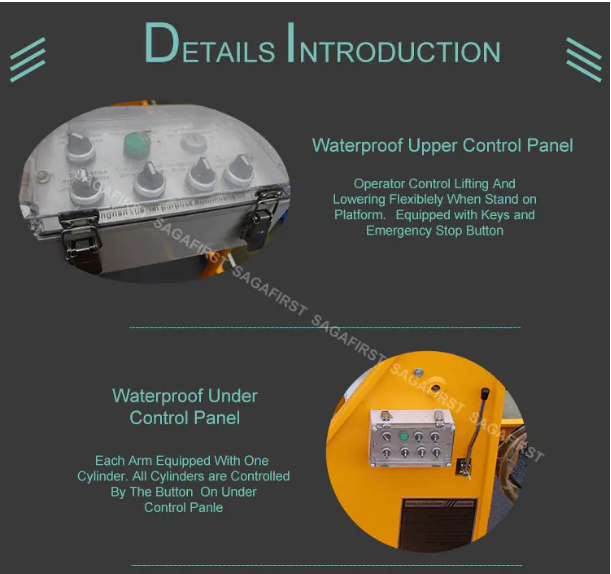

Electronic control operation

Up and down double operation
